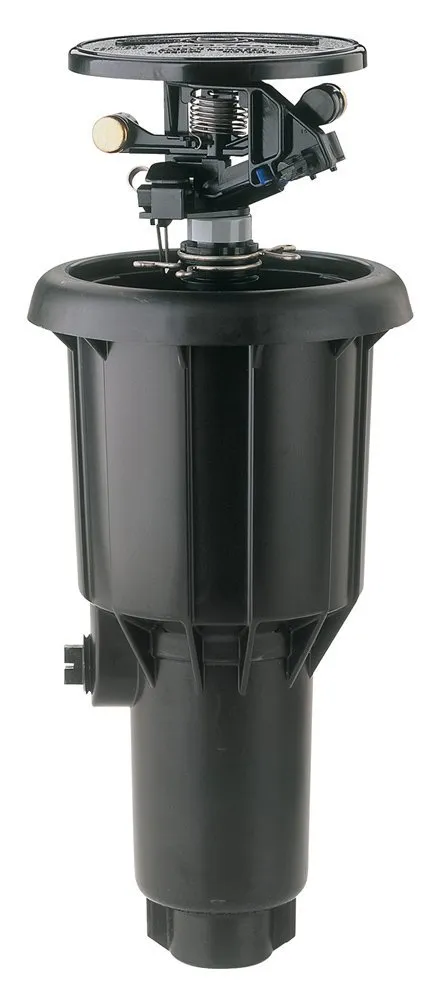

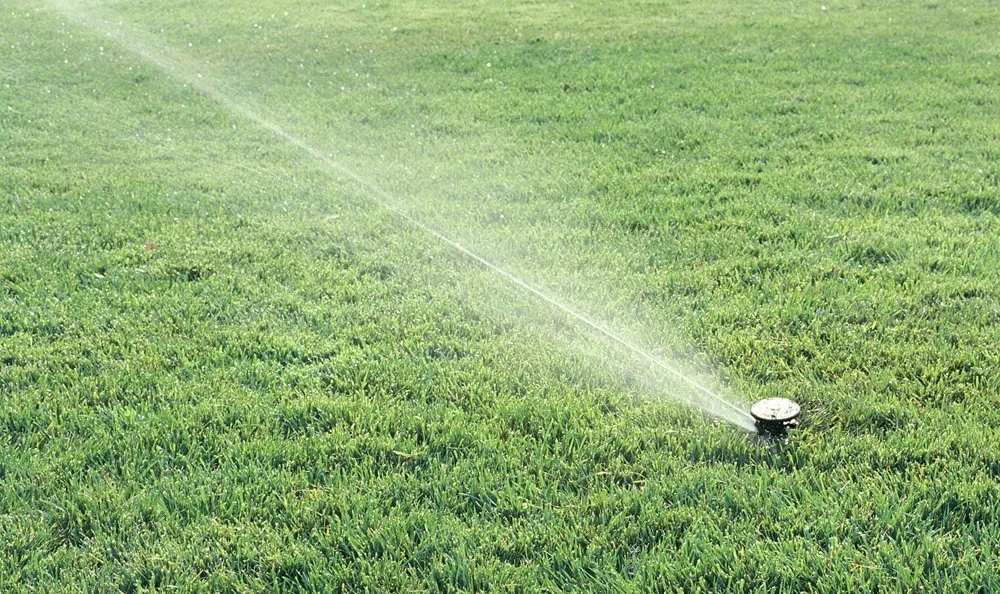

A popular tradition for underground watering systems, Rain Bird® pop-up impact sprinklers provide the convenience and reliability homeowners want and retract out of sight for high traffic areas. These heavy duty impacts have the strength and performance of industrial and commercial products, yet are easy to install and operate. Pop-up impact sprinklers are longlasting, and particularly noted for their performance with heavy-mineral content, such as hard water and well water, that can clog and corrode other sprinklers. Also an excellent choice for reclaimed water irrigation systems in drought areas.

• Deluxe Pop-Up Impact Rotor
• Water Saver brass weighted PJ™ spray guide arm controls stream, prevents side splash onto buildings and walkways
• Double-weighted arm for slower rotation and increased distance of throw. Allows wider pressure range (25 to 50 psi or 1,7 to 3,5 bar)
• Rolled lip case design aids in setting proper installation height, prevents grass and weeds from growing into head and minimizes backwash
• Patented pressure-activated wiper seal assures reliable pop-up and pop-down
• Diffuser screw breaks water into smaller droplets for uniform watering and allows up to 25% radius reduction
• 360° Full-circle or arc adjustable from 20° to 340°
• Heavy-duty, high impact case with sturdy, reinforced ribbed design
• Blue #8 nozzle pre-installed
• Includes 4 additional interchangeable nozzles to customize flow from 1.5 gpm to 8.4 gpm
• Two interchangeable low angle (LA) nozzles (sold separately)
• Spacing from 24 to 45 feet apart (7,3 to 13,7 m)
• 3-1/2" pop-up to clear tall grass
• Combination 1/2" or 3/4" bottom, and 1/2" side female connections offer more flexibility.

Specifications:

• Rotor Series: Maxi-Paw / Mini-Paw
• Coverage Radius: 22-45 ft
• Inlet: 1/2 or 3/4 in
• Pop-Up Height: 3 in
• Dimensions: 5" (12,7 cm) diameter, 9 3/10" (23,6 cm) tall
• Coverage Arc: 360° Full Circle or 20° - 340° Part Circle.
