Product Details
＋

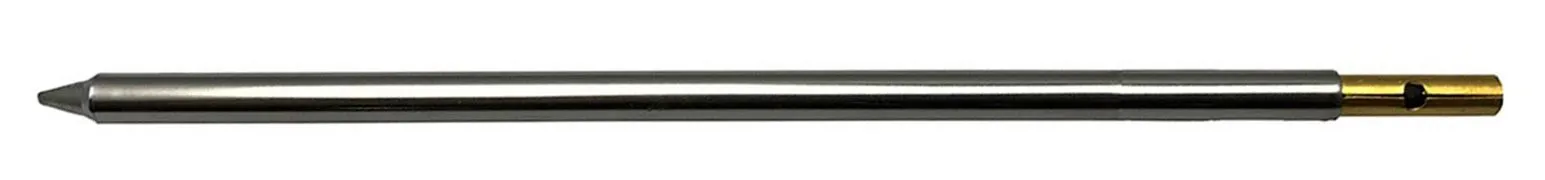

- STTC-Solder Tip Cartridges are the standard soldering tip range for the Metcal MX-500, MX-5200 and MX-5200 series soldering systems.
- All cartridges are available in 3 temperature ranges, 600-series nominally 330°C, 700-series nominally 390°C and 800-series nominally 450°C.
- The temperature/series is designated by the first digit following the dash in the part number. e.g. 600-series is STTC/SMTC-0xxx, 700-series is STTC/SMTC-1xxx and 800-series is STTC/SMTC-8xxx.
- Metcal recommends the 700-series for the majority of applications.
- The 600-series for light load or low temperature applications.
- 800-series for high temperature and thermally demanding applications.
- Can be used with leaded and lead-free solder.
- The Metcal "SmartHeat®-Technology" automatically adjusts power levels during each soldering operation.
