Name: Membrane Electrode Assembly (MEA) Electrochemical Cell for Proton- or Anion- Exchange Membrane Fuel Cell Testing - MEA-MFC
SKU: 2320012

Product Details ＋

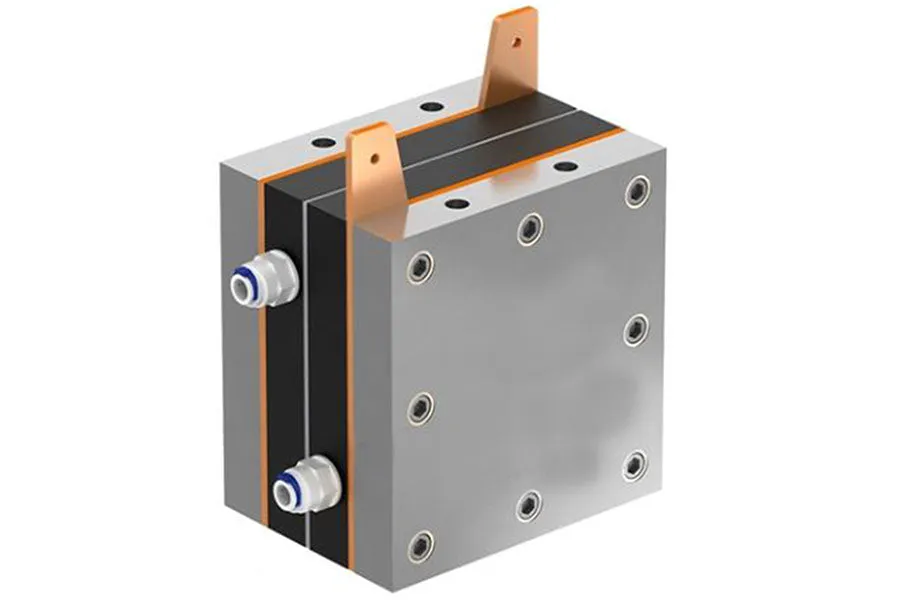

The MEA-MFC is a split electrochemical cell with MEA structures for low temperature proton- or anion- exchange membrane fuel cell testing.

SPECIFICATIONS:

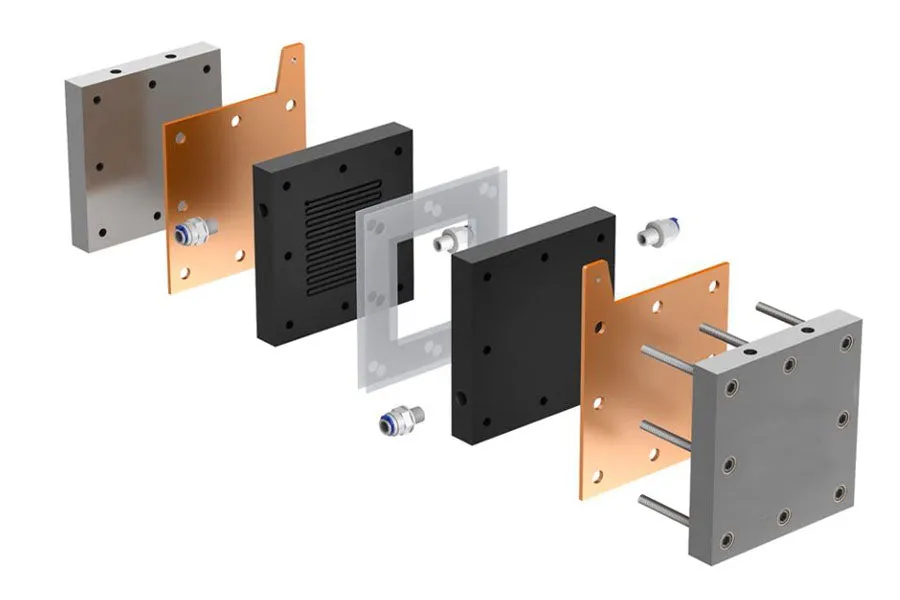

Structural Features	The whole electrochemical cell was made by high purity titanium (Ti) metal for support and protection, copper plates as current collector, and graphite plates with serpentine channels for gas flow and diffusion. PTFE gaskets with high electrochemical corrosion property was used to hold the membrane electrode assembly (MEA) with a sandwitch structure. Flow Channels with serpentine shape for increasing reaction retention time. Flow channels with other shapes are also available upon request, such as parallel, vein type.
Channel Area	2 cm * 2 cm
Temperature Control Unit (Optional)	For low-temperature PEMFC and AEMFC testing, mild temperature (60-100°C) normally is required with heating tapes and temperature controller:
Gas Flow and Humidity Controller (Optional)	For gas flow controller (eg: O2, H2, CH4), please consider the following ones: For humidity monitor, please consider the following humidity sensors:
Valves & Fittings	1/4" O.D Tube Fittings for inlet and outlet ports

Membrane Electrode Assembly (MEA) Electrochemical Cell for Proton- or Anion- Exchange Membrane Fuel Cell Testing - MEA-MFC
