COMMERCIAL-GRADE POWER & PERFORMANCE

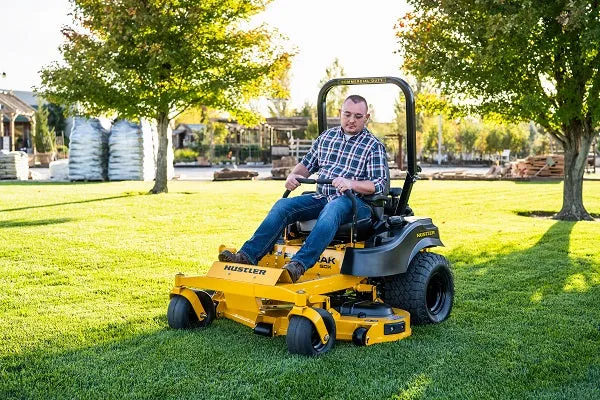

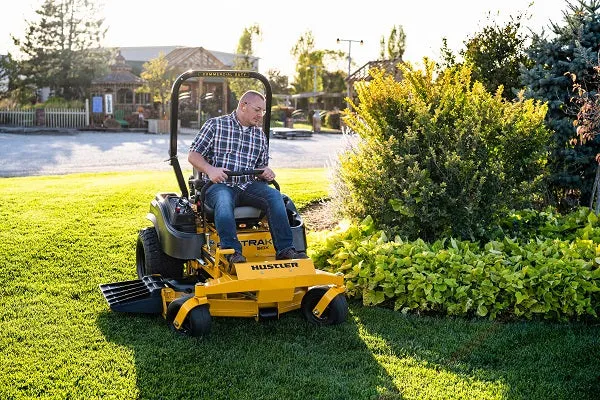

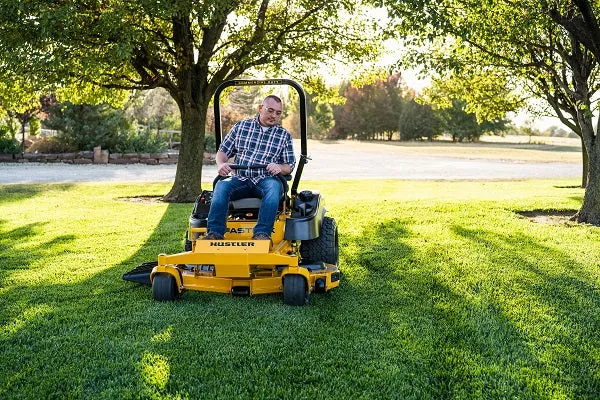

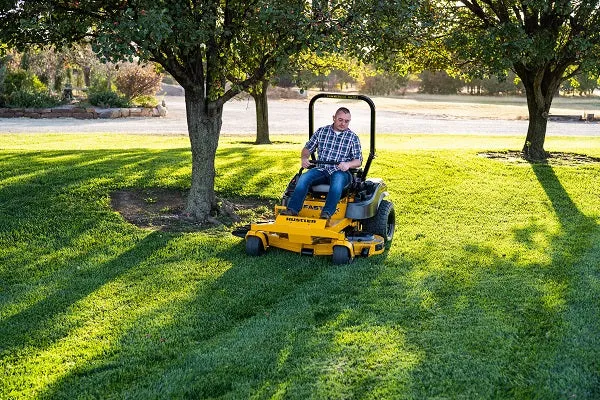

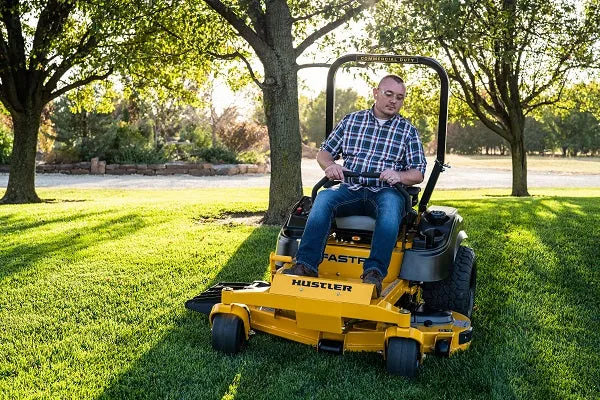

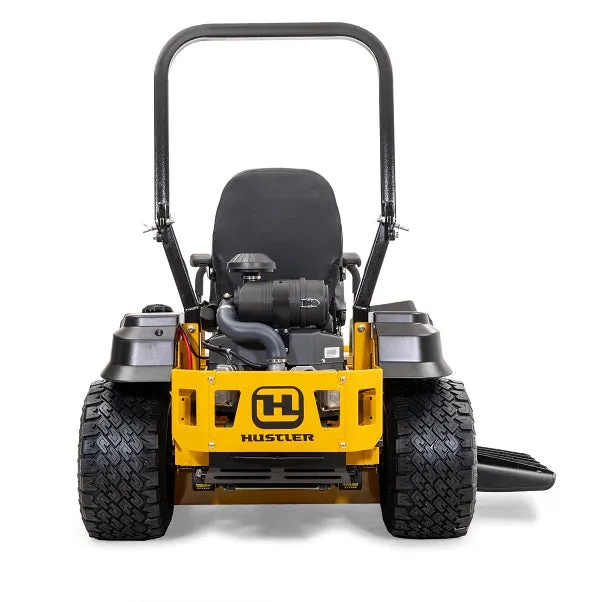

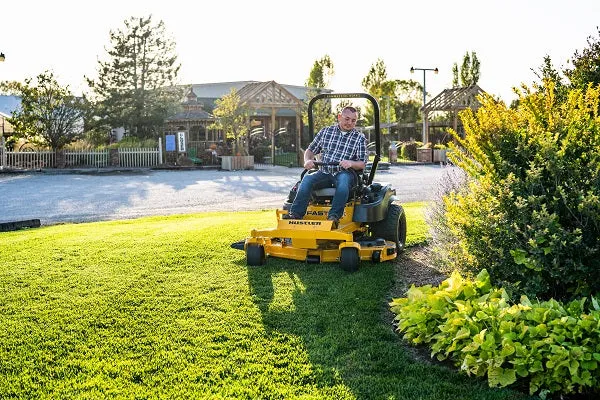

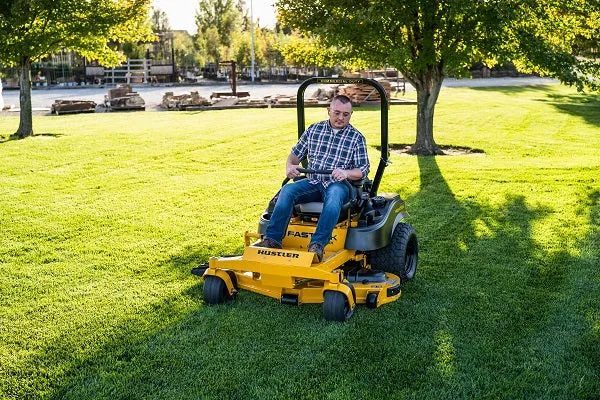

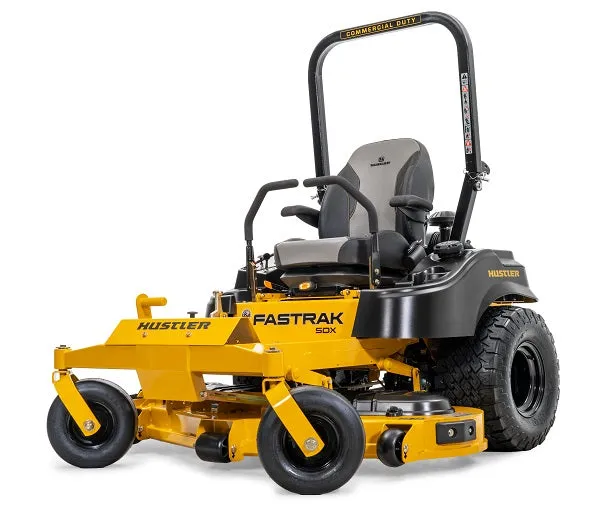

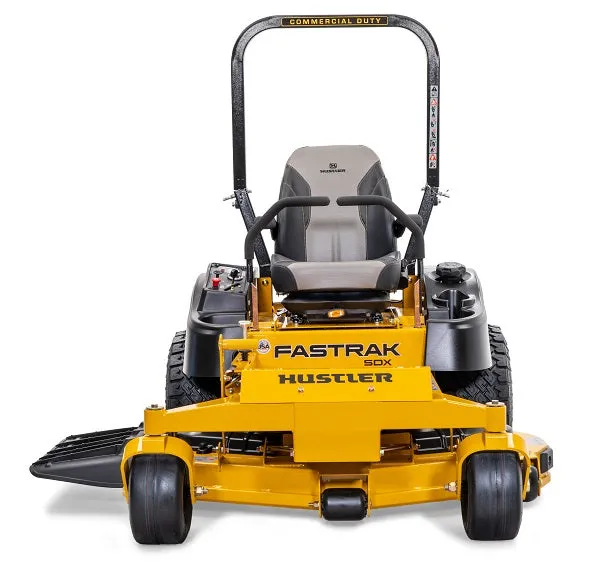

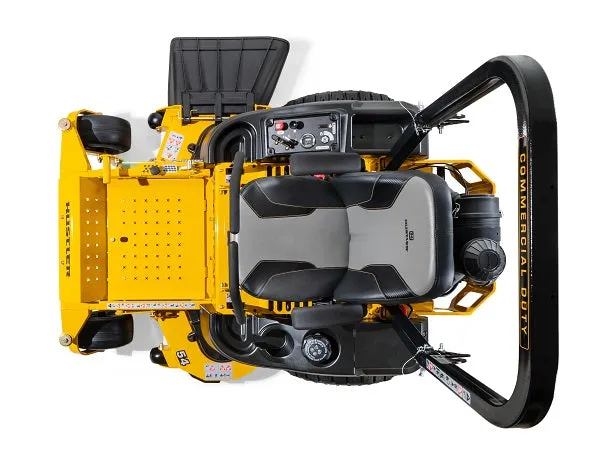

The Hustler FasTrak® SDX 54" offers commercial-grade power and performance at an unbeatable value. The heavy-duty and over-engineered construction of the deck, frame and front end makes this zero-turn the most durable in its class.
- Fabricated Frame for Durability: 1.5” x 3.0” steel frame making it one of the toughest and most durable in its class.
- SmoothTrak™ Steering: Precision control to help trim and maneuver easily around obstacles. Other brands have sensitive steering arms causing sudden and jerky movements.
- Easy Serviceability: Flip-up seat pan, removable floor pan and tool less removable pulley covers make maintenance easy and simple.
- Foot Operated Deck Lift: Easily adjust the deck height between 1.5” -4.5” with your foot.
- Welded Steel Deck: Durable 10 ga. welded fabricated steel.
- BigBite™ Tires: Enhanced traction while designed not to tear up turf. Hustler worked directly with the tire manufacturer on this product.
- Full Suspension Seat: Features an extra high back, an industrial tubular frame, and armrests. Additional bolstering for better side-to-side support, and internal suspension to absorb bumps. Engineered cushions add extra support and protection to relieve pressure on your spine and lower back.
- Serviceable Commercial-Grade Transmissions: Built with Hydro-Gear's commercial-grade serviceable transmissions.
- Remote Cannister Air Cleaner: Keep your engine cooler and healthier with the protection a commercial mower needs to operate at peak efficiency.
Hustler FasTrak SDX Accessories |
|
| 2 Bag Powered Catcher (no adapter needed) |
|
| Bac-Vac Catcher (no adapter needed) | |
| Side Steel Catcher 3.5 Bushel (no adapter needed) | |
| Side Mesh Catcher 3 Bushel (no adapter needed) | |
| Standard Aluminum Side Catcher 3.3 Bushel (Accelerator) | |
| Jumbo Aluminum Side Catcher 5 Bushel (Accelerator) |
|
| Mulching Kit 54" |
|
| Flex Forks |
|
| Light Kit |
|
| High Vacuum Kit 54" |
|
| Steering Lever Extension Kit |
|
| Stripe Kit | |
__________________________________________________________________
Specifications
Engine |
|
| Engine Manufacturer | Kawasaki FX691 |
| Engine Horsepower | 22 |
| Displacement | 726cc |
| Cooling | Air Cooled |
| Engine Warranty | 3 year |
Drive System |
|
| Type | Dual Hydrostatic |
| Transmission | Hydro-Gear ZT-3400™ |
| Fuel Capacity | 8.5 gal. |
| Ground Speed (Fwd) | Up to 10 mph |
| Parking Brake |
Integrated with steering levers
|
Deck |
|
| Cutting Width | 54" |
| Cutting Height | 1.5" to 4.5" |
| Deck Depth | 5" |
| Deck Lift | Foot Operated |
| Number of Blades | 3 |
| Blade Length | 18.50" |
| Blade Tip Speed | 18,900 |
| Spindles | Aluminum with 1" shaft and sealed ball bearings |
| Deck Engagement | Electric PTO Clutch |
| Deck Material |
Fabricated 10 gauge
|
| Spindle Mounts | Reinforced 11 gauge |
| Impact Trim Area | 11 gauge formed channel with rolled edge |
Construction |
|
| Frame | 1.5" X 3" steel tubing |
| Front Axle | Fabricated with sealed ball bearings |
| Front Caster Wheel |
Tapered roller bearings - grease-able
|
| Front Caster Fork | Fabricated 3/8" steel |
General |
|
| Seat | Extra High-Back Suspension Seat |
| Cup Holder | Yes |
Dimensions |
|
|
Front Tire (Inches) |
13 x 6.5-6 |
| Drive Tire (Inches) | 23 x 11-10 BigBite™ |
| Weight (lbs) | 925 |
| Height (Inches) | 48.9, 68.7 w/ rops up |
| Length (Inches) | 76.7 |
| Width w/ Chute Up (Inches) | 55 |
| Tire-to-Tire Width (Inches) | 51.5 |
| Productivity (Acres Per Hour) | 4.36 |
Warranty |
|
| Warranty | 4 years or 1000 hours |
Dimensions with Catcher |
|
| Catcher Style | 2-bag |
| Powered / Non-powered | Powered |
| Catcher Capacity | 7.2 bushel |
| Mower Length w/ Catcher | 98" |
| Mower Width w/ Catcher | 63" |
| Catcher Style 2 | Bac-Vac |
| Powered / Non-powered | Powered |
| Catcher Capacity | 8 bushel |
| Mower Length w/ Catcher | 88.75" |
| Mower Width w/ Catcher | 63" |
If you have any questions about the Hustler FasTrak SDX 54-inch commercial zero-turn mower, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
