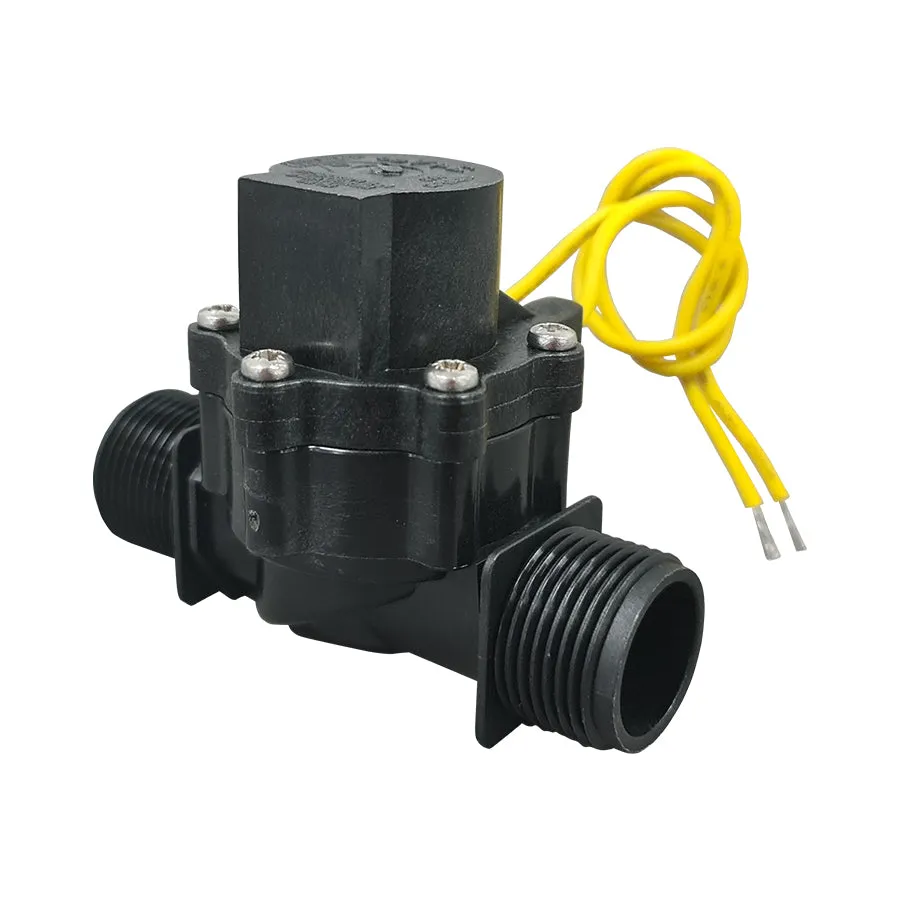

HR Watermarked 20mm Micro Solenoid Valves (MV80) with Flow Control (<50LPM)

The MV80 range of Micro Solenoid Valves are ideally suited to residential use to meet standard water meter flows. Various models available to suit every watering need, Working pressure range: 20 – 1250 kPa, Flow rate to 50 LPM, Watermark Approved

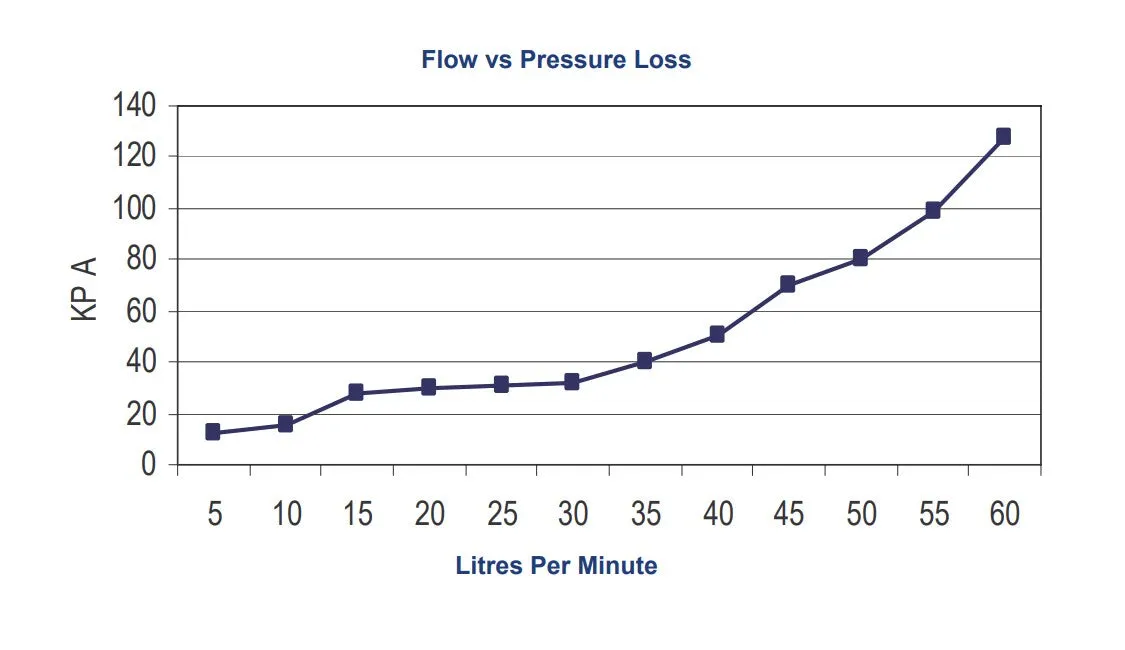

An economical micro control valve with high flow and low pressure loss for use in drip, spray and pop up sprinkler watering systems. Ideally suited to residential use to meet standard water meter fl ows. Also available with a Viton diaphragm option, suitable for chemical spray application.

FEATURES

• Body material Nylon 66 30% glass filled
• Natural Nitrile elastomer diaphragm, or optional Viton diaphragm
• Bonnet screws stainless steel 304
• 304 Stainless steel 40 mesh screen (on inlet side of valve)
• WATERMARK approval ATS 5200.030-2004

Eletrical Specifications

• Magnetic stainless steel grade plunger
• Natural Nitrile elastomer plunger tip
• Stainless steel 302 plunger spring
• Voltage 24vac 50Hz or optional 12vac
• Voltage tolerance 10% or -10%
• Power consumption 8VA
• Inrush current 320mA
• Holding current 260mA

OPERATION

The valve will operate correctly in the following conditions:

• Ambient temperature 2°C to 60°C
• Relative humidity 0% to 100%
• Temperature of water 2°C to 80°C
• Direction of fl ow markings on body (check before installing)
• Minimum operating pressure 20kPa
• Maximum operating pressure 1250kPa
• Supply pipe velocity range 1.2m/s to 6.5m/s
• Opening Speed 1 sec
• Closing Speed 1 sec
