HR Venturi Fertilizer Injector Kits with Complete Suction Line

The Venturi Fertilizer Injectors are used to inject soluble or liquid fertilizer in greenhouse, open field and landscape watering systems.

APPLICATIONS

For use in commercial irrigation projects to connect decoders to two wire cable path and utility trailer lines.

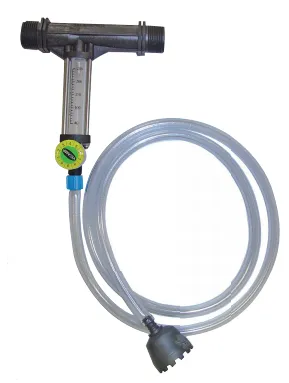

KIT INCLUDES

• Venturi Built in sight glass flow indicator
• Control valve to throttle amount of fertilizer
• 1 metre of suction tube
• Screen

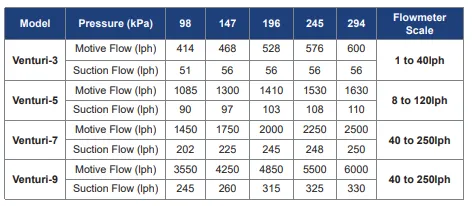

SPECIFICATIONS

• Body - Polypropylene for resistance to acids and other chemicals
• Maximum working pressure: 785kPa
• Minimum working pressure on pressurized systems must be 98kPa

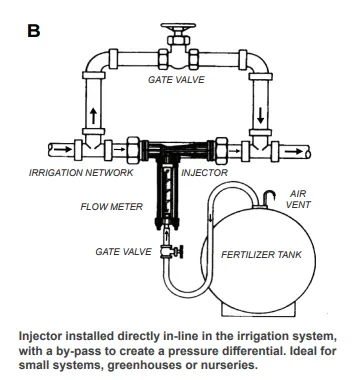

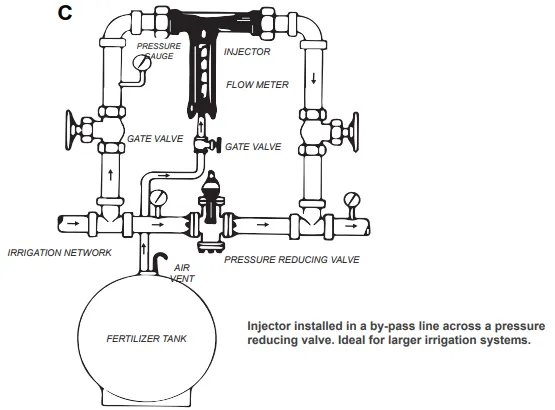

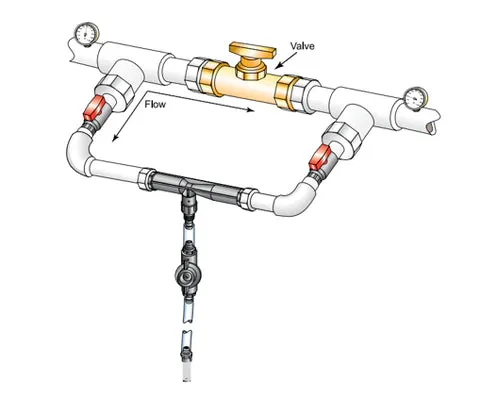

• When using on by pass pressure diff erential between the inlet and outlet must be at least 70kPa
• Venturi should always be installed on level plain
