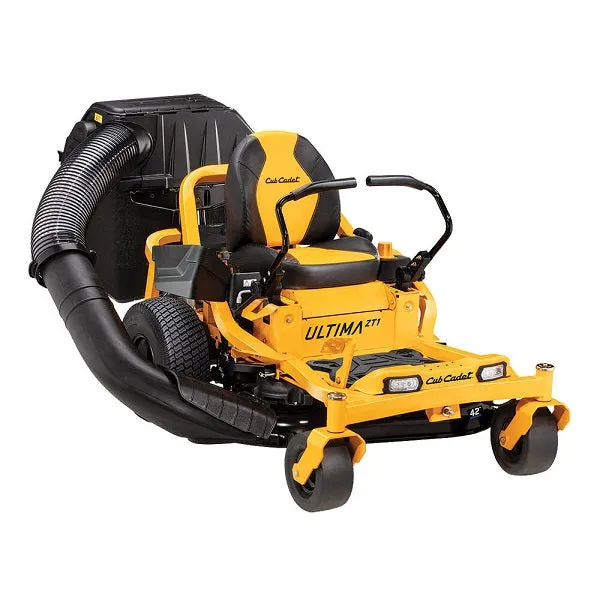

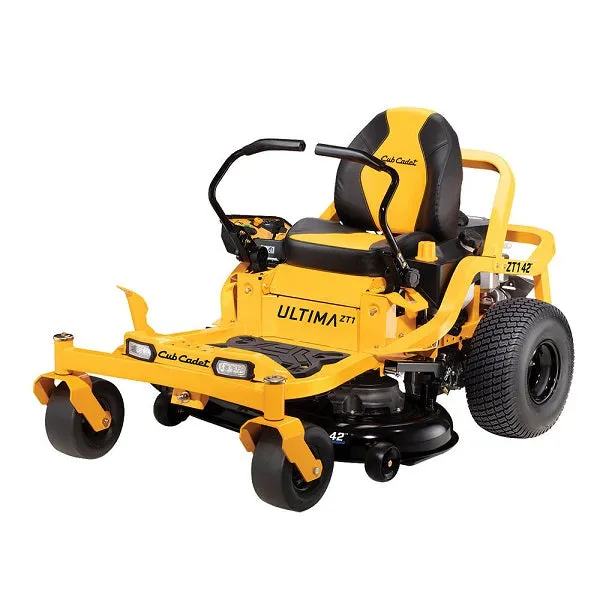

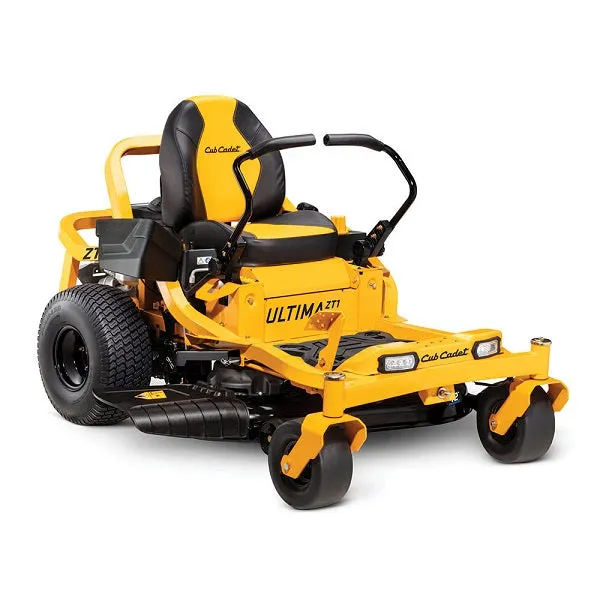

Ultima ZT
The award-winning Ultima Series™ features enhanced strength and durability, redefined comfort and uncompromised performance.
Features:
- Powerful Engine: A 22 HP/725cc Kohler 7000 twin-cylinder OHV engine delivers high-performance power to tackle your yard
- Dual Transmissions: Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
- Built with Strength: 2 x 2 steel frame with an automotive-grade corrosive defense system for enhanced strength and durability.
- Redefining Comfort: Settle in to a fully adjustable command center and experience next-level comfort designed for optimized speed and control from head to toe.
- Twin Blade Deck: Advanced cutting performance, ensuring durability and reliability while delivering the pristine Cub Cadet Signature Cut and an unprecedented level of bagging performance.

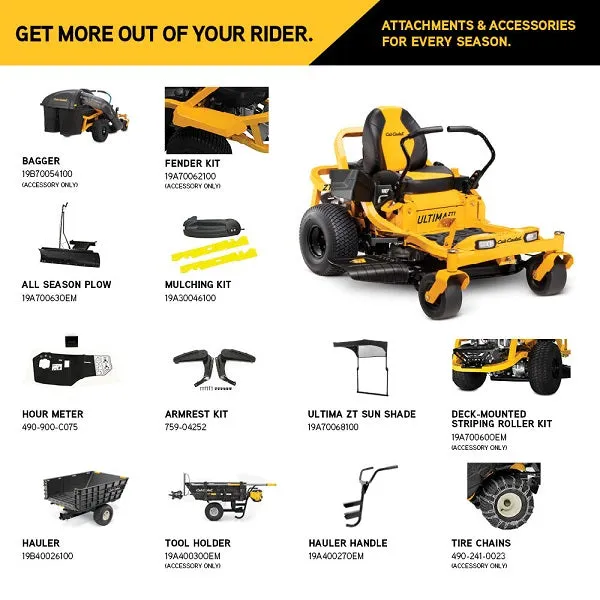

| ZT1 42 Accessories | |
| Double Bagger | 6.5 Bushel |
|
| 52-inch All-Season Plow Blade |
|
| 42" Striping Kit |
|
| 42" XTreme Mulching Kit |
|
| Hour Meter Kit |
|
| Fender Kit | |
| Tire Chains |
|
| Cub Cadet Hauler | |
Product Specifications:
Engine |
|
| Engine Brand | Kohler® |
| Engine Model | 7000 Series |
| Engine Model Number | KT725 |
| Engine Displacement | 725cc |
| Engine Output | 22HP |
| Starter Type | Electric |
| Fuel Tank Capacity | 3.5 gal. US (13.25 L) |
| Cylinders | Twin |
| Engine Start | Ignition Key |
| Engine Oil Capacity | 2.0 qt. US (1.89 L) |
| Lubrication | Fully pressurized |
| Charging System | 12 amp regulated |
| Fuel Gage | No |
| Governor | Mechanical |
| Choke | Choke-a-matic |
| Air Filter | Dual element |
| Oil Filter | Yes |
| Fuel Delivery | Carburetor |
Battery |
|
| Battery | 210 CCA |
| Battery Type | AGM (Absorbent Glass Mat) |
| Battery Voltage | 12V |
Drive System |
|
| Transmission | Hydro-Gear EZT 2200 |
| Forward Speed | 7 MPH / 11.3 km/h |
| Reverse Speed | 3.5 MPH / 5.6 km/h |
| Drive System | Hydrostatic |
Cutting Deck
|
|
| Deck Cutting Width | 42 in |
| Deck Wash | Yes |
| Deck Material | 11-gauge steel |
| Deck Engagement (PTO) | Electric |
| Deck Construction | Stamped |
| Blade(s) | 2 |
| Deck Lift | Foot pedal with Dial Adjust |
| Cutting Height Range | 1" - 4.5" |
| Anti-Scalping | 2 gauge wheels |
| Deck Positions | 15 |
Warranty |
|
| Warranty | 3-year unlimited hours |
| Frame Warranty | Lifetime Limited |
| Deck Shell Warranty | Lifetime Limited |
| Commercial Warranty | No |
Chassis |
|
| Frame | 2'' x 2'' tubular steel |
| Turning Radius | 0º |
| ROPS | No |
| Rear Tow Hitch | Yes |
| Corrosions Protection | Yes |
Controls |
|
| Cruise Control | No |
| Brakes | Disc |
| Steering Control | Lap Bars |
Comfort
|
|
| Seat Type | 20" high-back |
| Armrests | No |
| Seat Adjustment | Knob |
Wheels
|
|
| Rear Tires | 20" x 8"-8" |
| Front Tires | 11" x 6"-5" |
| Tire Tread | Turf Master / Multi Trac |
Additional Specifications |
|
| Hour Meter | No |
| Mulch Kit | Available separately |
| Headlight(s) | Dual LED |
| Cup Holder | Yes |
| Operator Presence System | Yes |
| Parking Brake | Lap Bar Integrated |
| Model Number | 17AREACSA10 |
Specifications |
|
| Series | Ultima Series™ ZT |
If you have any questions about this Cub Cadet Ultima ZT1 42-inch electric mower, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
