Product Details
＋

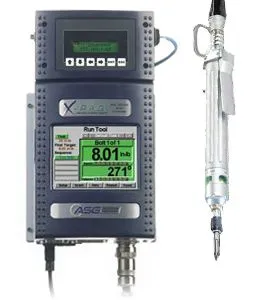

ASG offers X-PAQ™ Precision Fastening Systems for SD2500 Series tools. The ASG-SD2500-10PL-SY system includes the CT2500 X-PAQ™ Controller, 10 ft. heavy-weight tool cable, and SD2500-10PL inline screwdriver equipped with 1/4" hex drive and push/lever start combination operation.
- Precise, accurate transducerized DC electric torque and angle-controlled fastening
- 32 tasks for multiple assembly set-ups
- 8 available torque or angle control parameters within each task
- Data collection, and run-down graphing/export
- Programmable I/O for process control
- Available network interface for advanced data export and interfacing with plant controls
Specifications
- Model No.: ASG-SD2500-10PL-SY
- Series: SD2500
- Controller: ASG-CT2500, X-PAQ™ Controller for SD2500 Series Tools
- Data Recording?: Yes
- Included SD2500 Series Tool: ASG-SD2500-10PL, ASG-SD2500-10PL Push/Lever Start Transducerized Electric Screwdriver
- Driver Type: Inline
- Operation: Push/Lever Start Combination
- Max. Torque: 10 lbf·In. (1.1 N·m)
- Max. RPM: 1700 rpm
- Cable: ASG-CB2500-10HW, 10 ft. Heavy Weight Strain Relief Tool Cable
- Warranty: 1 Year or 1,000,000 Cycles
Classification
- Product Group: Precision Fastening
- Electric or Pneumatic: Electric
- Standard or Brushless: Brushless
- ESD-Safe1: Yes
1 Local ESD standards may vary. Contact for specific details.
