Description

Key V-SYSTEM Benefits:

Direct nutrient distribution

Maximum oxygen saturation

No air pump needed

No heat transferred

Vortex fluid motion

Naturally aspirated

Supports large plants

Pots and system completely drain

Prevents root clogging

Made in Britain

Key V-SYSTEM Features:

15 gallon (58L) V-POT

Water fill line

Total-drainage bases

Venturi injectors

Inspection Covers

5" spiral tubing

5" Dual-Flow™ fittings

Integrated filtration

T304 Stainless clamps

Heavy-duty components

Push-fit feed connections

JET-STREAM® Vortex™ pump

Specifications

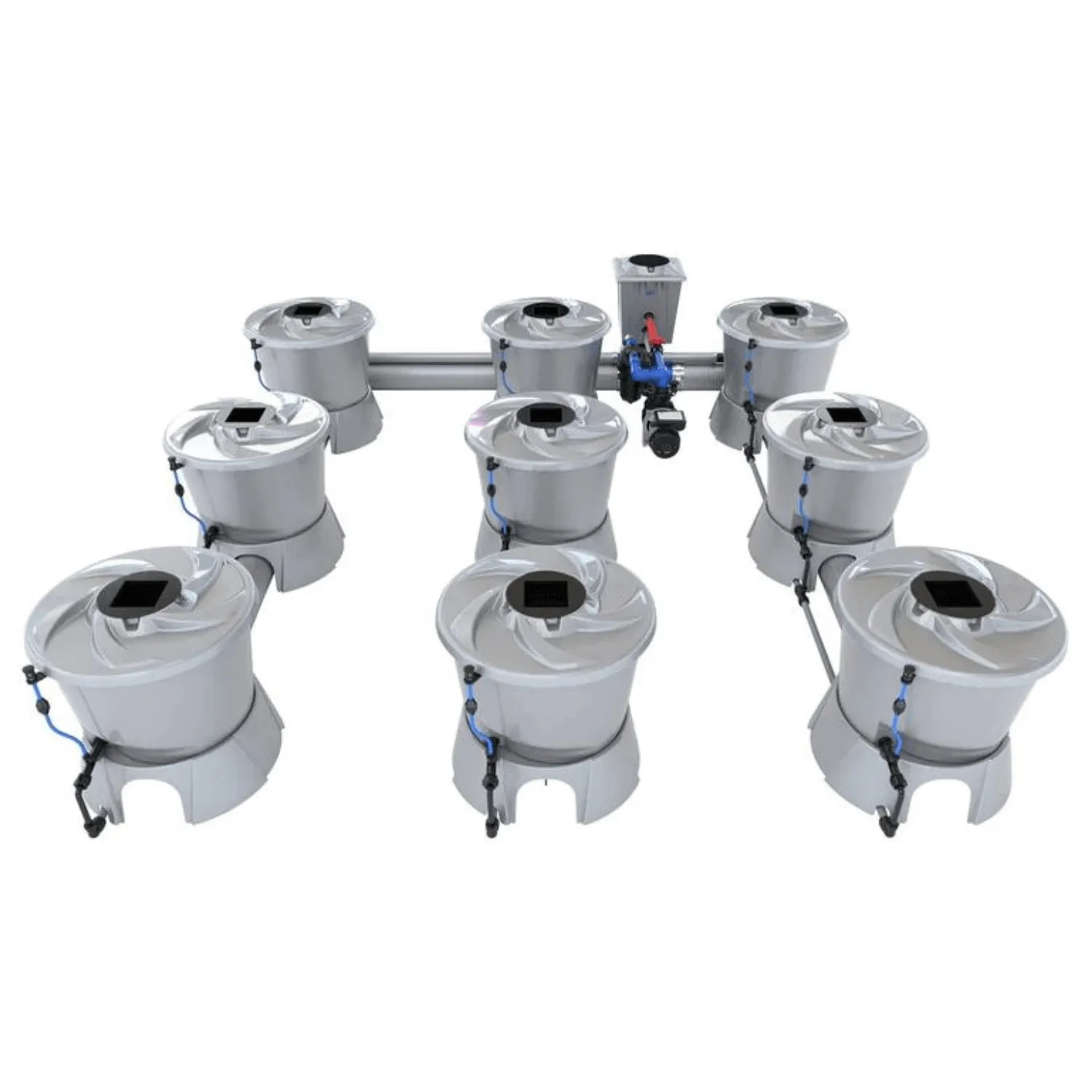

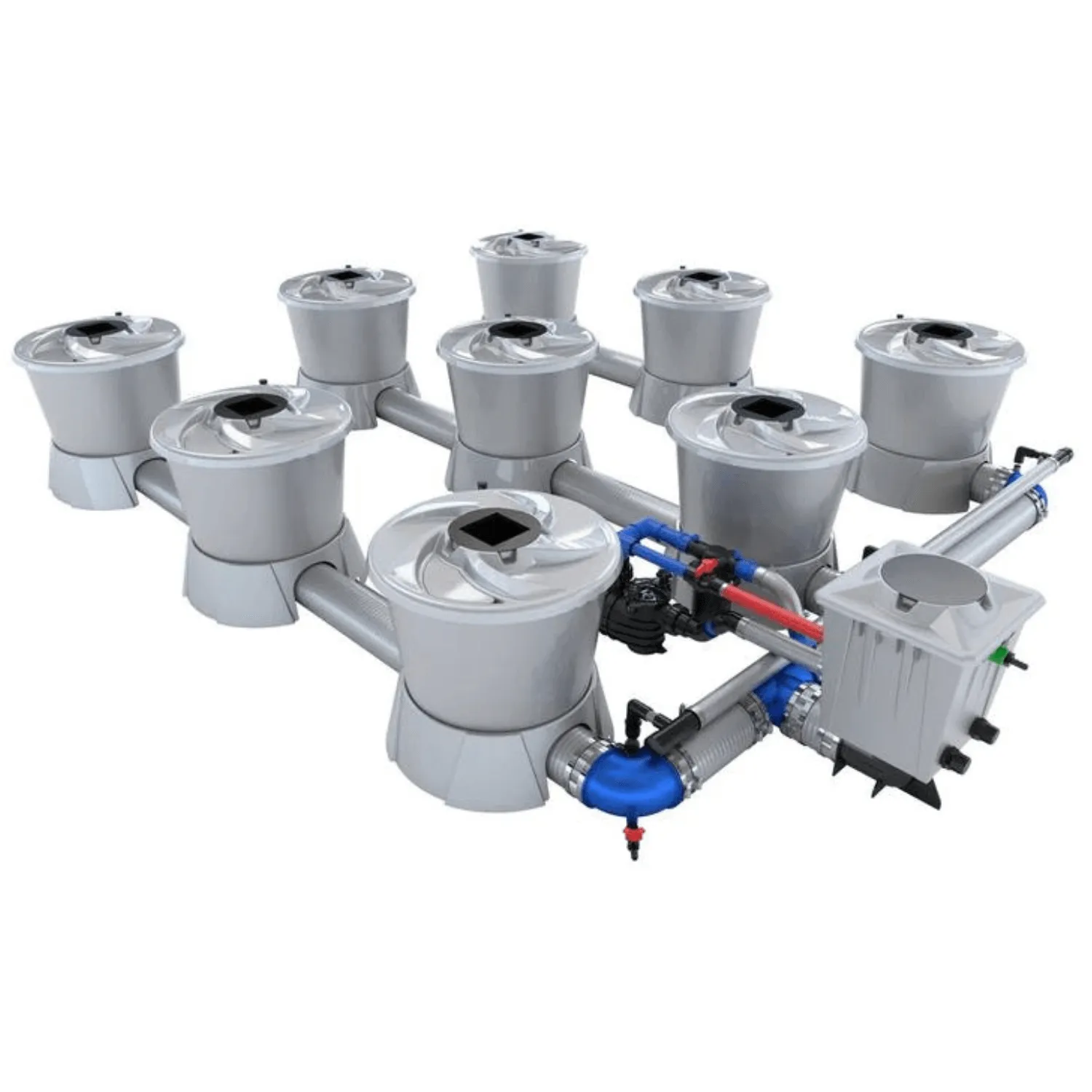

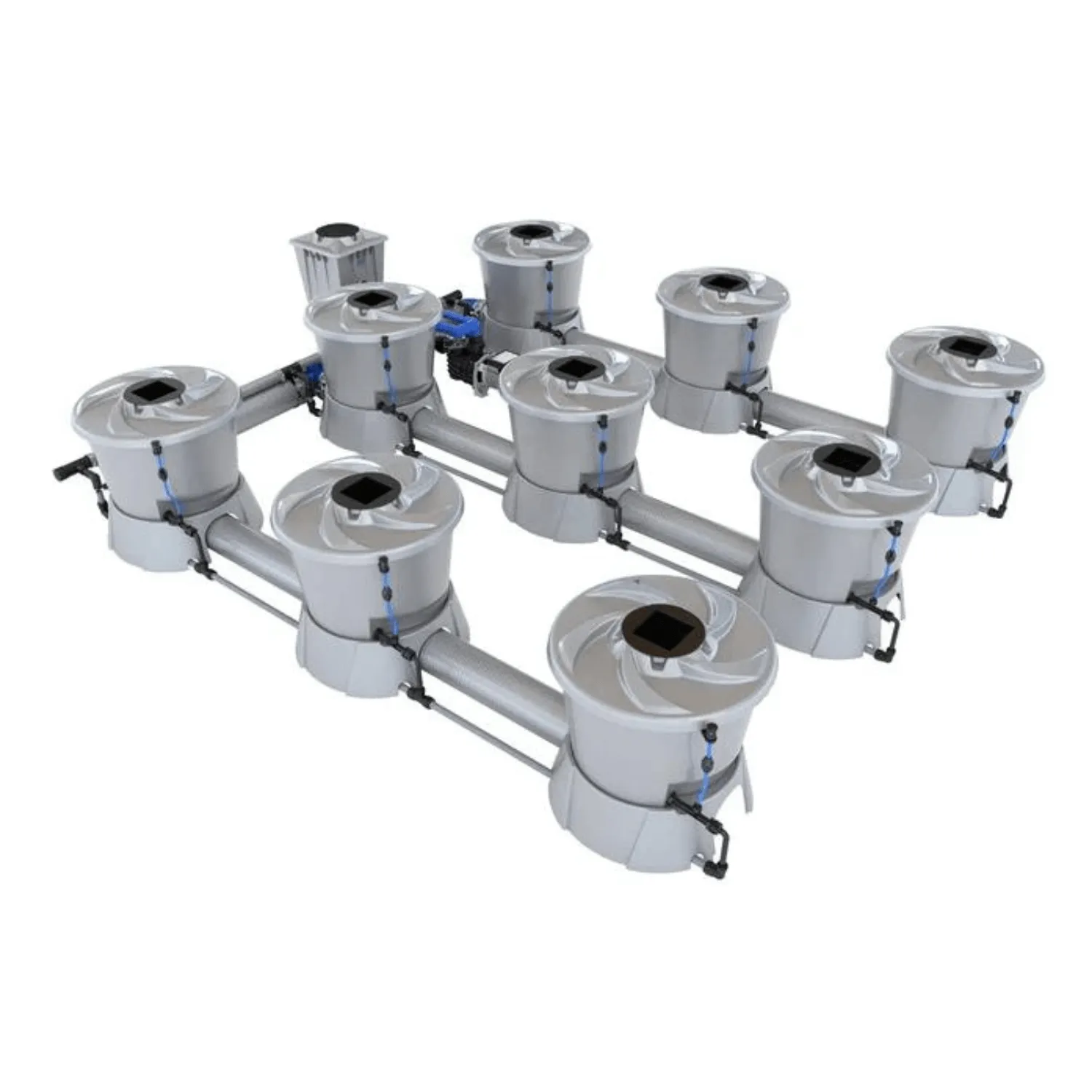

Product Name: V-SYSTEM 9 Pot 3 Row Kit

Technical Information

Number of pots: 9

Number of rows: 3

Kit total fluid volume: 146.4 gallons (554 L)

Minimum assembled size (can space pots more widely for a larger footprint):

Length: 6' 4.8" (76.8 inches / 1950 mm)

Width: 5' 9.3" (69.3 inches / 1760 mm)

Water Pump Included with the Kit:

Model: V-SYSTEM Vortex Water Pump 370W 120V 13200 l/h

Wattage: 370 watts

Flow Rate: 3487 gal/hr (13200 L/hr)

Recommended water chiller minimum capacity: 198 gallons (750 L)

Data Sheet

Download the instruction manual:

Download the technical drawing:

Bulk Discount

Buy 2 or more of this item and receive 5% off!

Discount will be automatically applied at checkout.

Kit Contents

The V-SYSTEM 9 Pot 3 Row Kit Includes:

1 x V-SYSTEM Vortex Water Pump 370W 120V 13200 l/h

9 x V-Pot 58L

9 x V-Pot Base

9 x V-Pot Lid

9 x V-Pot Lid Inspection Cover

9 x Square Net Pot

9 x V-Pot Clip

9 x Air Filter for V-SYSTEM Venturi, 6mm

9 x Silencer for Venturi

9 x Venturi Fitting

9 x Venturi Air Inlet Pipe 6mm Blue (2X 4")

9 x Venturi Inlet Fitting for 22mm Pipe

10 x Nut 5"

10 x Washer 5" Green Silicone

26 x 5" Stainless Steel Clamp

1 x Distribution Tee 40mm

3 x DM Push-Fit Elbow 22-15mm V-SYSTEM

3 x DM Push-Fit Elbow 22mm V-SYSTEM

6 x DM Push-Fit Tee 22-15mm V-SYSTEM

1 x 1/2" Drain Cap Fitting

1 x Drain Tap 1/2"-16mm Barb

2 x Elbow 5" Barbed with Drain Point

4 x Elbow 5" Threaded Dual-Flow

1 x Filter Manifold Complete 40mm

1 x Float Valve

1 x V-SYSTEM Header Pot 20L 40mm

1 x Silver Lid

1 x Header Pot Blank

1 x Hosetail 16mm-3/4" Female Green

9 x Pipe 22mm Gray Rigid 1 Meter - Venturi Feed

1 x Pipe 32mm Red 1 Meter Spiral

4 x Pipe 40mm Silver 1 Meter Spiral

10 x Pipe 5" Silver Spiral 80cm

2 x Tee 5" Barbed

6 x Tee Threaded 5" Dual-Flow

2 x Threaded Tank Connector 1"

1 x Vortex Pump Inlet Manifold 40mm Long

2 x 1" Cap for Chiller Connections

1 x Tank Connector Straight 32mm

1 x Tank Connector Straight 40mm

1 x Terminal Manifold Left 40mm

1 x Terminal Manifold Center 40mm

1 x Terminal Manifold Right 40mm

24 x 22mm Insert for 22mm Rigid Pipe

2 x Clamp Size 2

10 x Clamp Size 3

1 x 8mm Screwdriver for 5" Clamp

1 x Wrench 5"

1 x Wrench for Float Valve

1 x 8mm Socket for 5" Clamp

1 x Pipe Cutter 50mm

3 x Silicone Grease - Food Grade
