Description

Key V-SYSTEM Benefits: This system offers direct nutrient distribution, maximum oxygen saturation and it doesn't need an air pump. There's no heat transferred, which is a plus. The fluid motion is vortex-like which can be naturally aspirated. It has the capability to support large plants. The pots and system drain completely which prevents root clogging. It's proudly made in Britain.

Key V-SYSTEM Features: The V-SYSTEM comes with a approximately 4 cubic feet V-POT, a water fill line, total-drainage bases and Venturi injectors. It features Inspection Covers, a 5" spiral tubing and a 5" Dual-Flow™ fittings. It also includes an integrated filtration system which is secured by T304 stainless clamps for durability. The other heavy-duty components include push-fit feed connections and a JET-STREAM® Vortex™ pump that ensures optimal performance.

Specifications

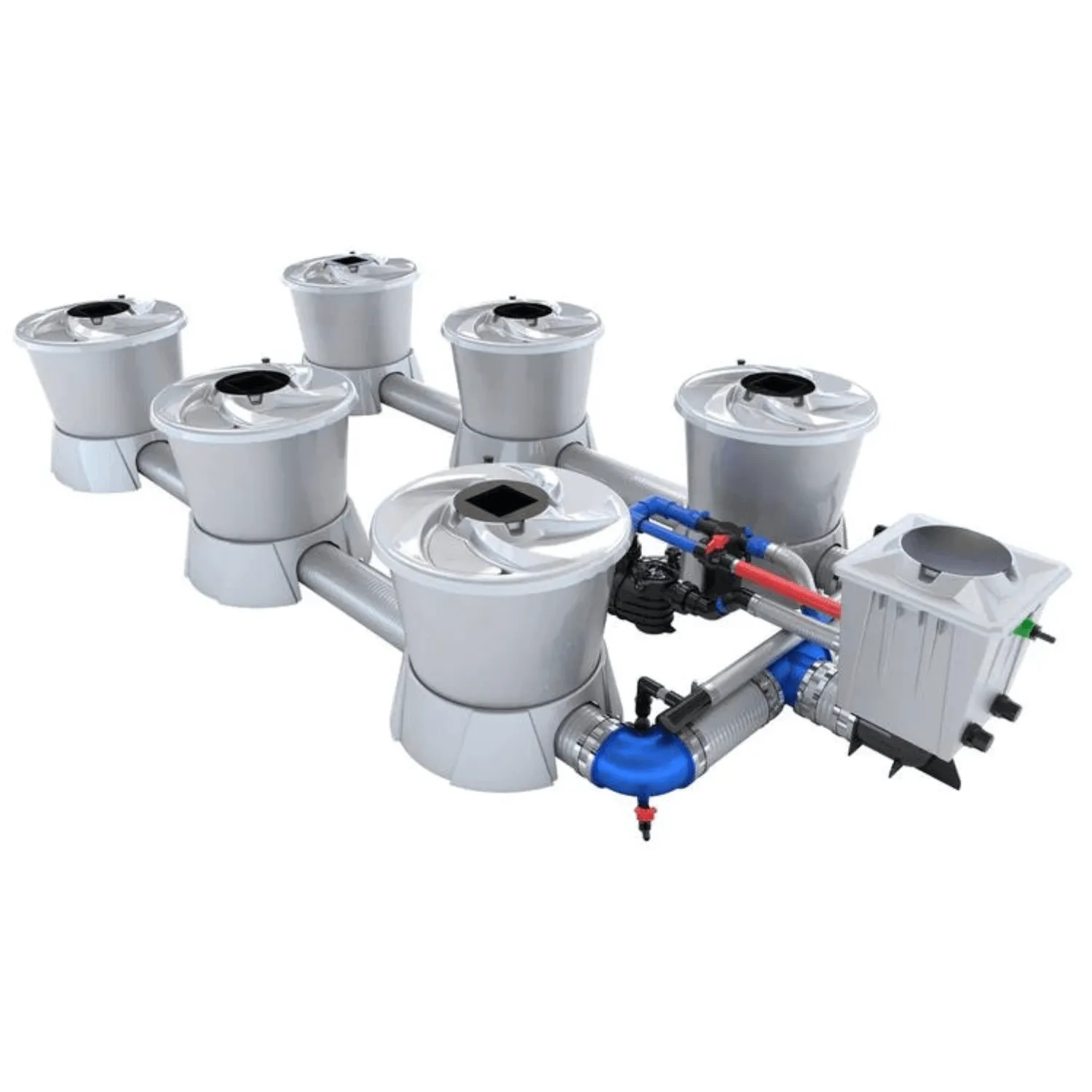

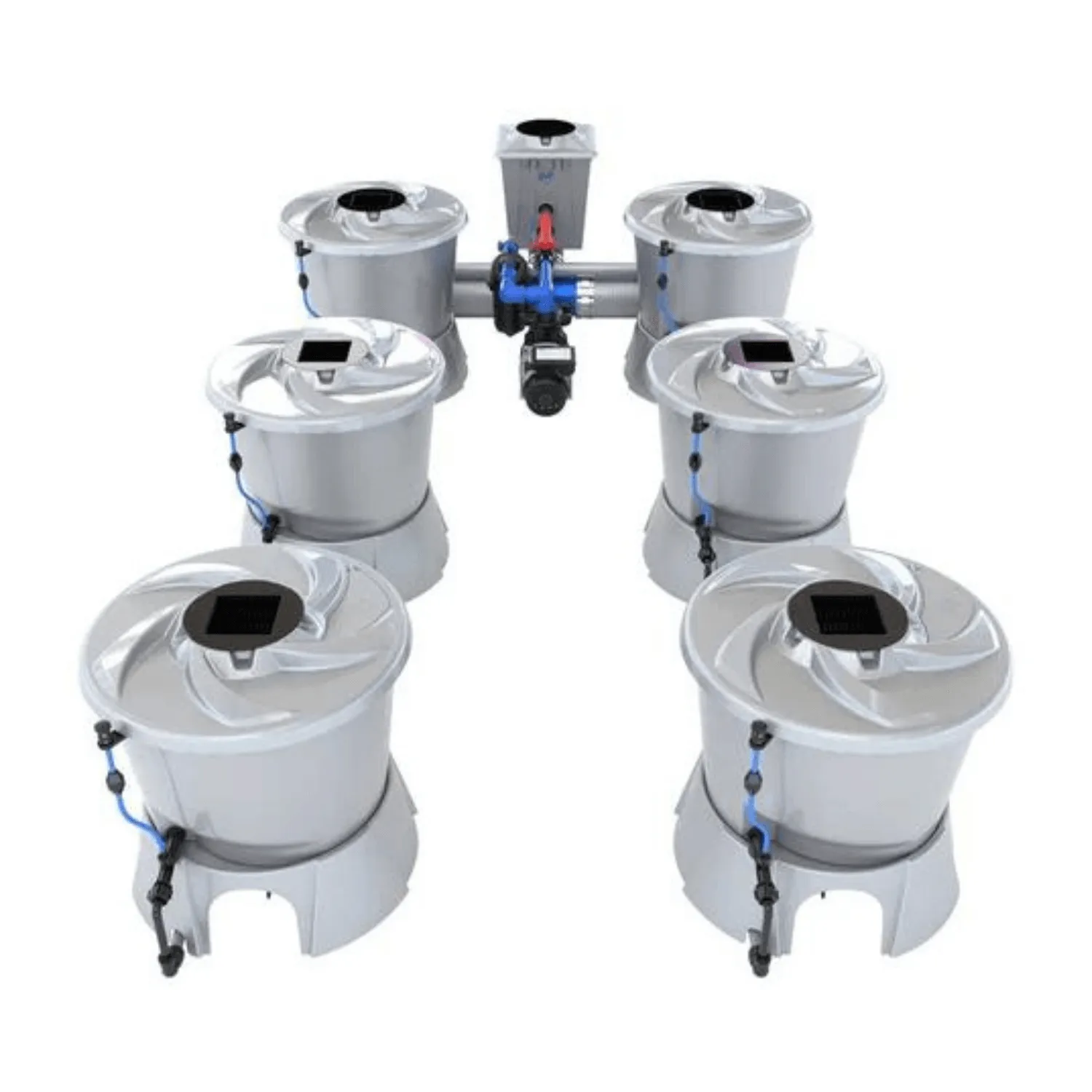

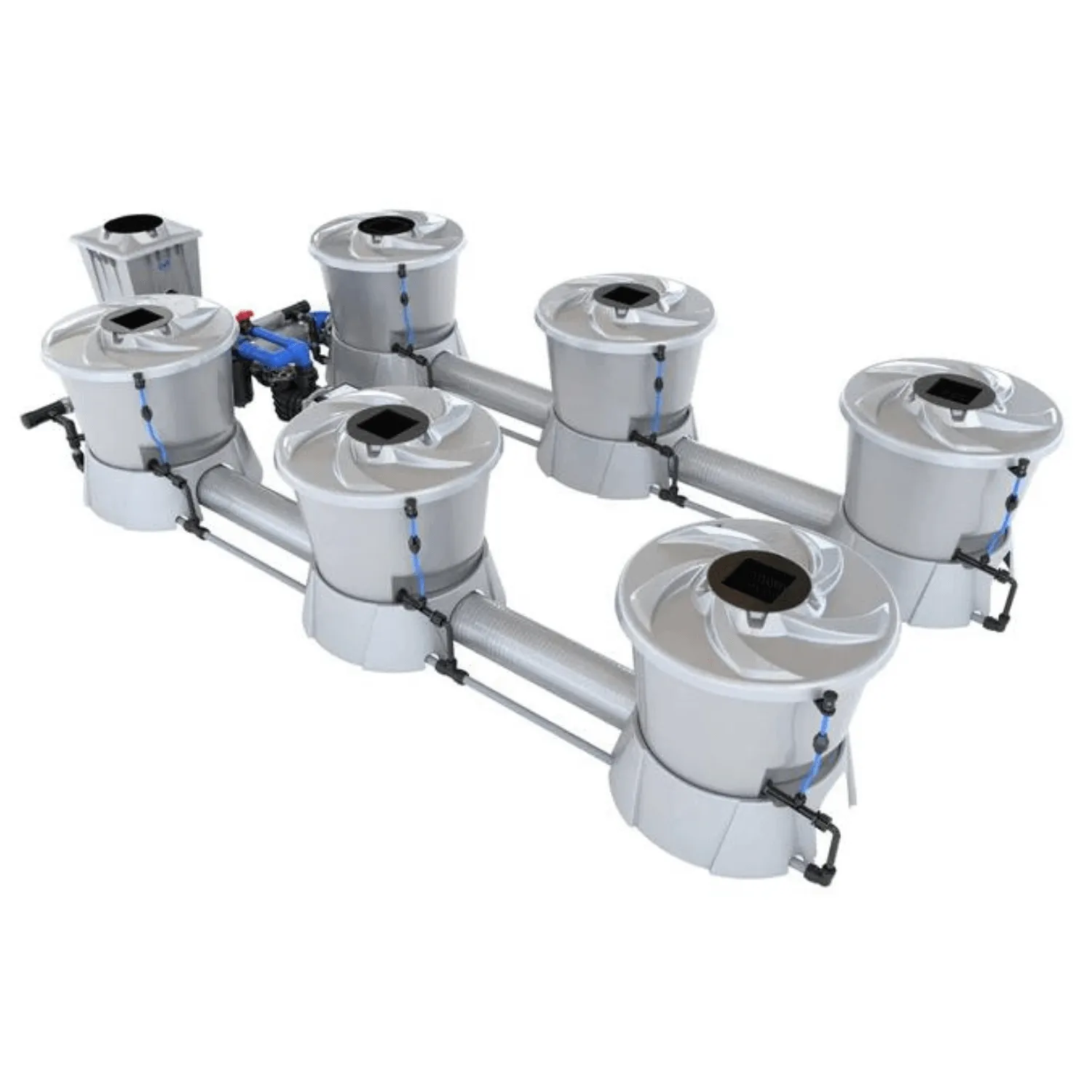

V-SYSTEM 6 Pot 2 Row Kit

Technical Information

Number of pots: 6

Number of rows: 2

Kit total fluid volume: 96.4 gallons (365 L)

Minimum assembled size (can space pots more widely for a larger footprint):

Length: 6' 4.8" (76.8 inches / 1950 mm)

Width: 3' 11.2" (47.2 inches / 1200 mm)

Water Pump Included with the Kit:

Model: V-SYSTEM Vortex Water Pump 250W 120V 11700 l/h

Wattage: 250 watts

Flow Rate: 3091 gal/hr (11700 L/hr)

Recommended water chiller minimum capacity: 132 gallons (500 L)

Data Sheet

Download the instruction manual:

Download the technical drawing:

Bulk Discount

Buy 2 or more of this item and receive 5% off!

Discount will be automatically applied at checkout.

Kit Contents

The V-SYSTEM 6 Pot 2 Row Kit Includes:

1 x V-SYSTEM Vortex Water Pump 250W 120V 11700 l/h

6 x V-Pot 58L

6 x V-Pot Base

6 x V-Pot Lid

6 x V-Pot Lid Inspection Cover

6 x Square Net Pot

6 x V-Pot Clip

6 x Air Filter for V-SYSTEM Venturi, 6mm

6 x Silencer for Venturi

6 x Venturi Fitting

6 x Venturi Air Inlet Pipe 6mm Blue (2X 4")

6 x Venturi Inlet Fitting for 22mm Pipe

7 x Nut 5"

7 x Washer 5" Green Silicone

18 x 5" Stainless Steel Clamp

1 x Distribution Tee 40mm

2 x DM Push-Fit Elbow 22-15mm V-SYSTEM

2 x DM Push-Fit Elbow 22mm V-SYSTEM

4 x DM Push-Fit Tee 22-15mm V-SYSTEM

1 x 1/2" Drain Cap Fitting

1 x Drain Tap 1/2"-16mm Barb

2 x Elbow 5" Barbed with Drain Point

3 x Elbow 5" Threaded Dual-Flow

1 x Filter Manifold Complete 40mm

1 x Float Valve

1 x V-SYSTEM Header Pot 20L 40mm

1 x Silver Lid

1 x Header Pot Blank

1 x Hosetail 16mm-3/4" Female Green

6 x Pipe 22mm Gray Rigid 1 Meter - Venturi Feed

1 x Pipe 32mm Red 1 Meter Spiral

3 x Pipe 40mm Silver 1 Meter Spiral

7 x Pipe 5" Silver Spiral 80cm

1 x Tee 5" Barbed

4 x Tee Threaded 5" Dual-Flow

2 x Threaded Tank Connector 1"

1 x Vortex Pump Inlet Manifold 40mm Long

2 x 1" Cap for Chiller Connections

1 x Tank Connector Straight 32mm

1 x Tank Connector Straight 40mm

1 x Terminal Manifold Left 40mm

1 x Terminal Manifold Right 40mm

16 x 22mm Insert for 22mm Rigid Pipe

2 x Clamp Size 2

8 x Clamp Size 3

1 x 8mm Screwdriver for 5" Clamp

1 x Wrench 5"

1 x Wrench for Float Valve

1 x 8mm Socket for 5" Clamp

1 x Pipe Cutter 50mm

2 x Silicone Grease - Food Grade
