Description

Key V-SYSTEM Benefits: This system offers direct nutrient distribution and maximum oxygen saturation. No air pump is needed, and no heat is transferred. Vortex fluid motion is a key benefit of the system, and it is naturally aspirated. The V-SYSTEM supports large plants, and the pots and system completely drains. This helps prevent root clogging. It's made in Britain.

Key V-SYSTEM Features: The V-SYSTEM features a 15 gallon (58L) V-POT, and a water fill line for ease of use. It also includes total-drainage bases and Venturi injectors. Inspection covers are incorporated for easy system checks and it houses 5" spiral tubing. The system uses 5" Dual-Flow™ fittings for optimal flow. Integrated filtration ensures cleanliness of the system. T304 Stainless clamps secure the system and it includes heavy-duty components for longevity. It uses push-fit feed connections for ease of use. The system is powered by a JET-STREAM® Vortex™ pump.

Specifications

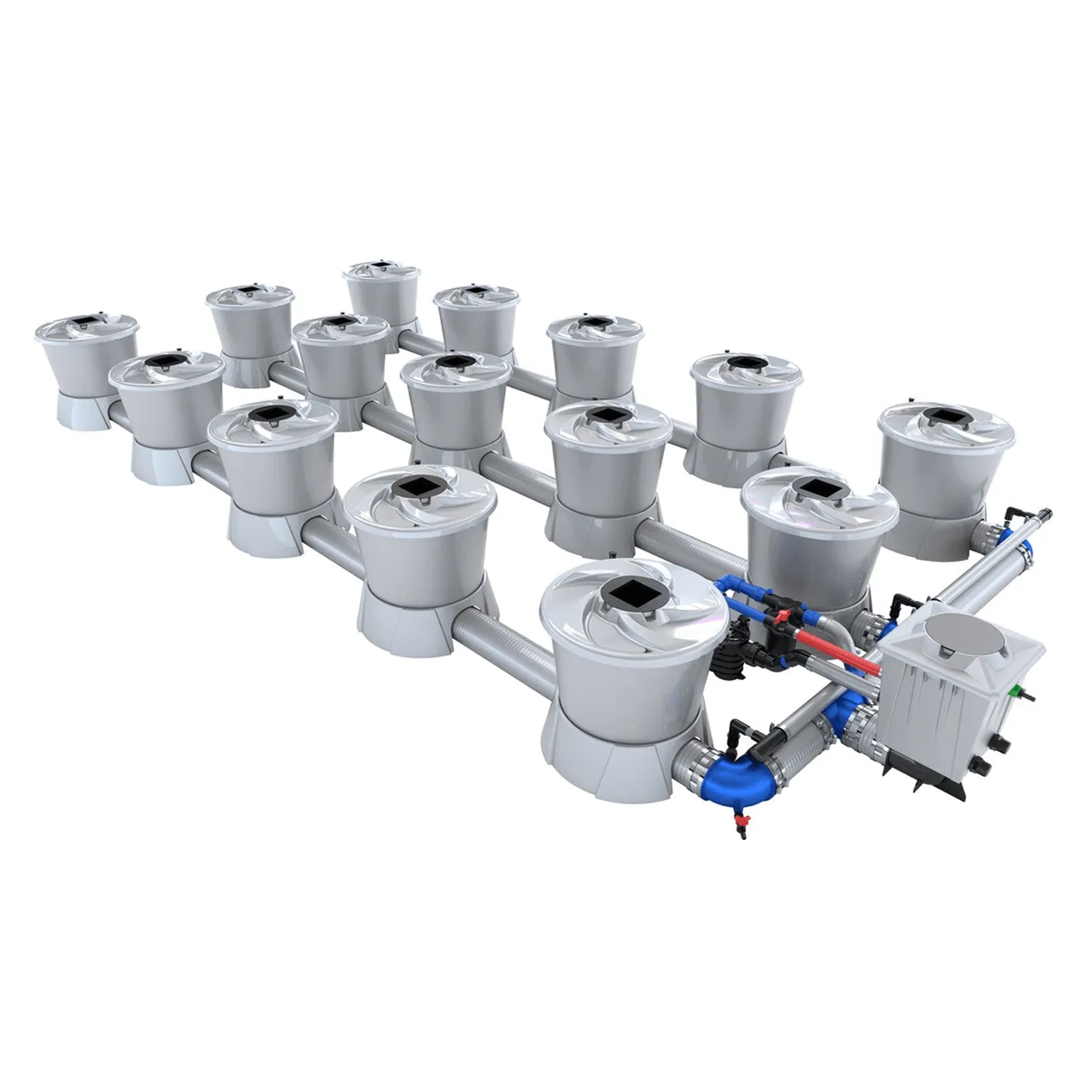

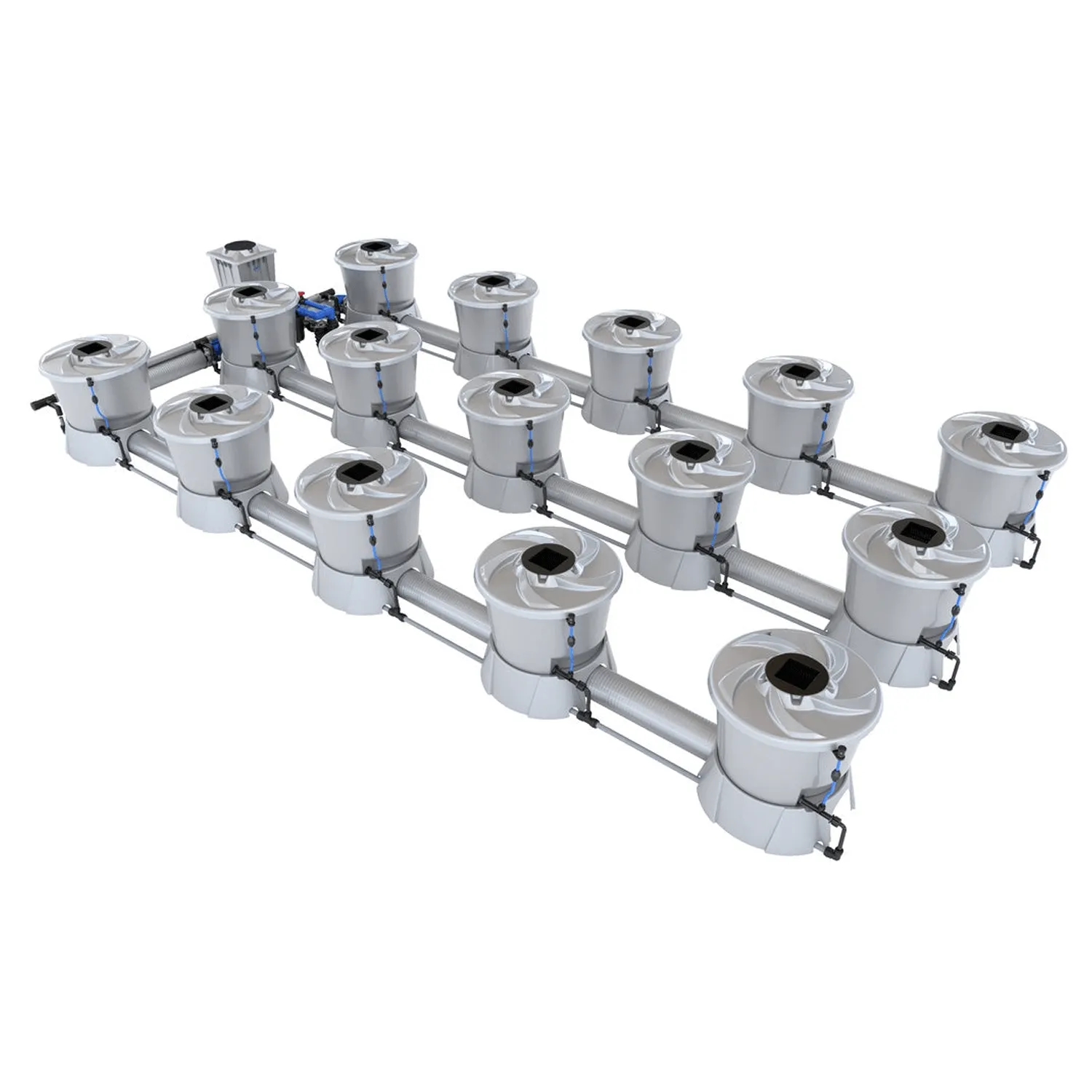

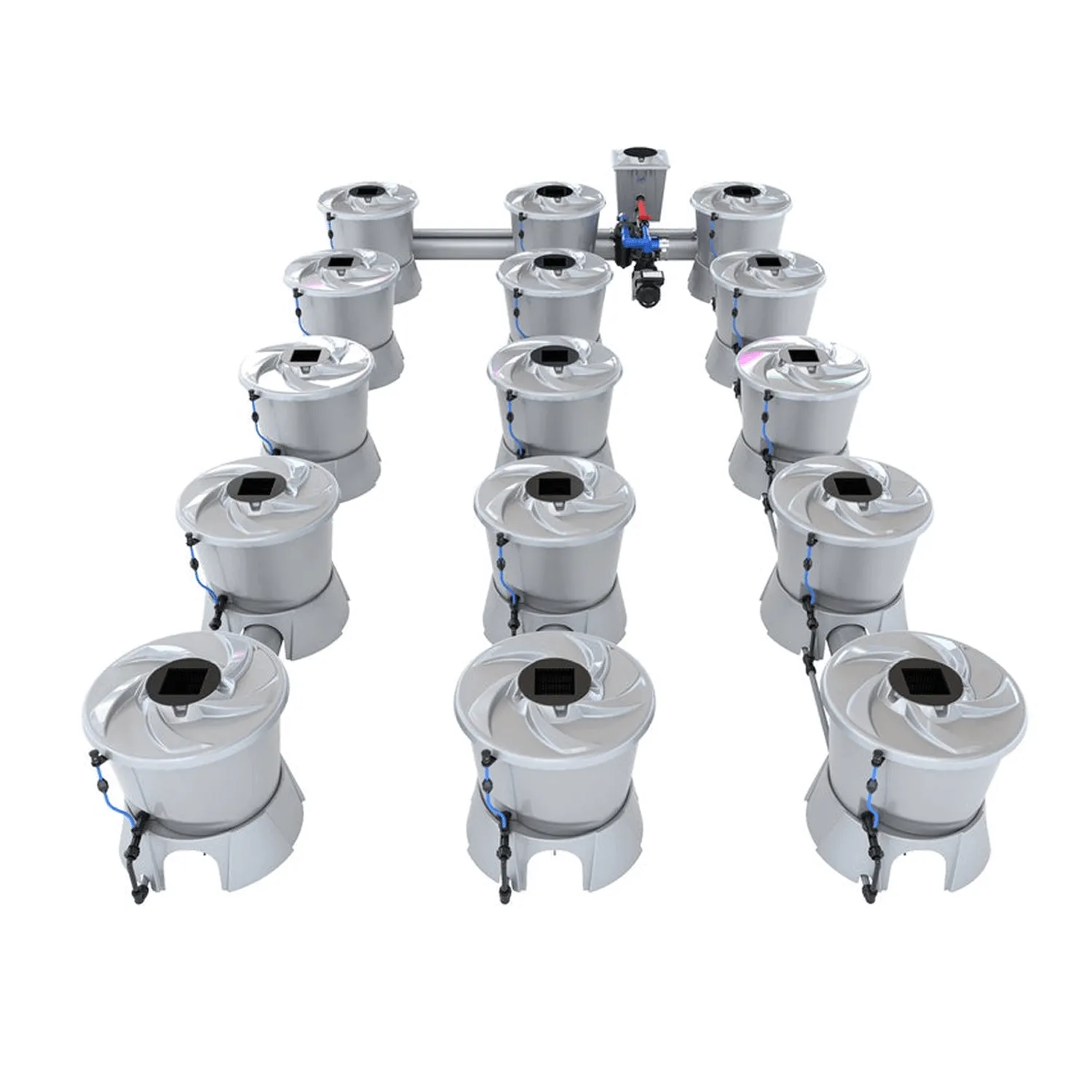

Product Name: V-SYSTEM 15 Pot 3 Row Kit

Technical Information

Number of pots: 15

Number of rows: 3

Kit total fluid volume: 244.6 gallons (926 L)

Minimum assembled size (can space pots more widely for a larger footprint):

Length: 10' 2.4" (122.4 inches / 3110 mm)

Width: 5' 9.3" (69.3 inches / 1760 mm)

Water Pump Included with the Kit:

Model: V-SYSTEM Vortex Water Pump 750W 120V 15000 l/h

Wattage: 750 watts

Flow Rate: 3963 gal/hr (15000 L/hr)

Recommended water chiller minimum capacity: 396 gallons (1500 L)

Data Sheet

Download the instruction manual:

Download the technical drawing:

Bulk Discount

Buy 2 or more of this item and receive 5% off!

Discount will be automatically applied at checkout.

Kit Contents

The V-SYSTEM 15 Pot 3 Row Kit Includes:

1 x V-SYSTEM Vortex Water Pump 750W 120V 15000 l/h

15 x V-Pot 58L

15 x V-Pot Base

15 x V-Pot Lid

15 x V-Pot Lid Inspection Cover

15 x Square Net Pot

15 x V-Pot Clip

15 x Air Filter for V-SYSTEM Venturi, 6mm

15 x Silencer for Venturi

15 x Venturi Fitting

15 x Venturi Air Inlet Pipe 6mm Blue (2X 4")

15 x Venturi Inlet Fitting for 22mm Pipe

16 x Nut 5"

16 x Washer 5" Green Silicone

38 x 5" Stainless Steel Clamp

1 x Distribution Tee 40mm

3 x DM Push-Fit Elbow 22-15mm V-SYSTEM

3 x DM Push-Fit Elbow 22mm V-SYSTEM

12 x DM Push-Fit Tee 22-15mm V-SYSTEM

1 x 1/2" Drain Cap Fitting

1 x Drain Tap 1/2"-16mm Barb

2 x Elbow 5" Barbed with Drain Point

4 x Elbow 5" Threaded Dual-Flow

1 x Filter Manifold Complete 40mm

1 x Float Valve

1 x V-SYSTEM Header Pot 20L 40mm

1 x Silver Lid

1 x Header Pot Blank

1 x Hosetail 16mm-3/4" Female Green

15 x Pipe 22mm Gray Rigid 1 Meter - Venturi Feed

1 x Pipe 32mm Red 1 Meter Spiral

4 x Pipe 40mm Silver 1 Meter Spiral

16 x Pipe 5" Silver Spiral 80cm

2 x Tee 5" Barbed

12 x Tee Threaded 5" Dual-Flow

2 x Threaded Tank Connector 1"

1 x Vortex Pump Inlet Manifold 40mm Short

2 x 1" Cap for Chiller Connections

1 x Tank Connector Straight 32mm

1 x Tank Connector Straight 40mm

1 x Terminal Manifold Left 40mm

1 x Terminal Manifold Center 40mm

1 x Terminal Manifold Right 40mm

36 x 22mm Insert for 22mm Rigid Pipe

2 x Clamp Size 2

10 x Clamp Size 3

1 x 8mm Screwdriver for 5" Clamp

1 x Wrench 5"

1 x Wrench for Float Valve

1 x 8mm Socket for 5" Clamp

1 x Pipe Cutter 50mm

4 x Silicone Grease - Food Grade
