Product Details
＋

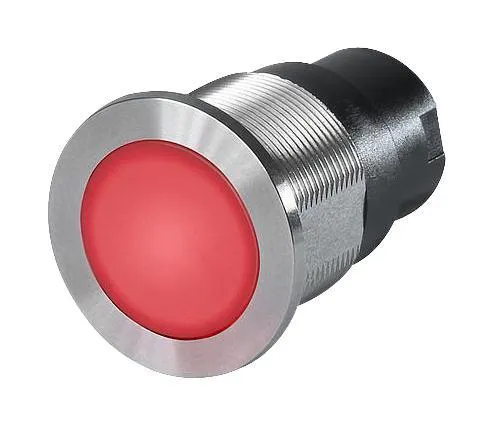

3-101-398 CPS, 19mm Capacitive Touch Sensor as Momentary Switch Metal/Ceramic Full button Illumination, SPST 100mA @ 42VAC/60VDC, 5-28VDC Illumination Supply 5 Million Ops @ 100 mA
Description
- Capacitove Touch Sensors as Momentatry switch available in version Standard, Illiminated, with Point Illumination, Lettering, varnished in different colours
- Assembly by mounting with nut
- Pin connections, Pins with Soldering Aid or Clip for Pins
- Vandal Proof
Characteristics
- Housing and actuator material types: zinc die-cast with nickel plating or stainless steel
- Wide range of materials, colours, lettering, colours of illumination - Switching voltage max. 42VAC 60VDC, switching current max. 100 mA
- 5-28VDC Illumination Supply Voltage
- Zinc die-cast for housing and Ceramic actuator For indoor use, no illumination, no lettering
- Stainless Steel for housing and Cermaic actuator for use in harsh environments outdoors (see technical data)
- Tamper Proof suitable for public spaces
- Varnished Version Colour adjustments to customer housings possible, as standard: Signal colors red, green optional: housing or actuator varnishing according to provided color specifications the varnished actuators are sealed by transparent lacqueur after the laser lettering
Specification
| Schurter Part Number | 3-101-398 |
| Switch Size | 5 x 20mm |
| Nominal Voltage | 42VAC/60VDC |
| Rated Power | 0.6W |
| Switch Type | Capacitive Touch Momentary C/O |
| Illumination voltage | 5-28VDC @ 10mA |
| Nominal Current (AC/DC) | 12 Amp |
| Contact Resistance ON/OFF | <100m Ohm |
| Dimensions | ø22 x 14.6mm |
| Operating Temperature Range | -40°C / 85°C |
| Termination | Faston/Solder Pins |
| IP Protection Rating | IP 67 with Oring |
| Unit Weight | 40g |
| Factory Pack Qty | 10 |
