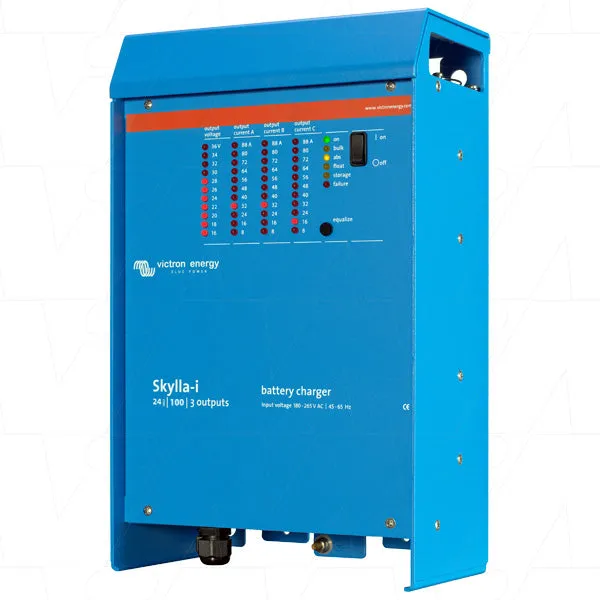

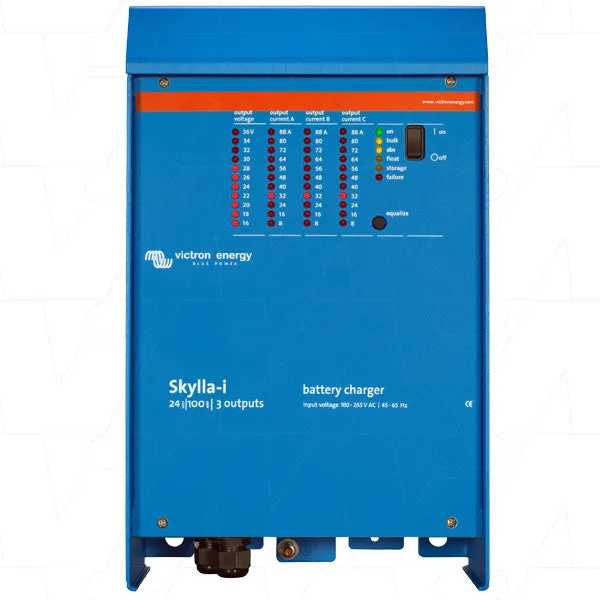

24V 100A Skylla-i SLA/ Triple Output Charger with M8 Connection SKI024100002
The Skylla-i (3) features 3 isolated outputs. All outputs can supply the full rated output current.Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits.Next to a CAN bus (NMEA2000) interface, a rotary switch, DIP switches and potentiometers are available to adapt the charge algorithm to a particular battery and its conditions of use. Several chargers can be synchronised with the CAN bus interface.Every Skylla-i comes with a battery temperature sensor. In order to compensate for voltage loss due to cable resistance, the is provided with a voltage sense facility so that the battery always receives the correct charge voltage. The chargers also accept a DC supply. As a result of the perfectly stabilized output voltage, the Skylla-i can be used as a power supply if batteries or large buffer capacitors are not available.
Features:
- 3 isolated outputs
- full rated output current
- power components will always operate within specified limits
- A CAN bus (NMEA2000) interface is available to adapt the charge algorithm
- A rotary switch is available to adapt the charge algorithm
- DIP switches is available to adapt the charge algorithm
- battery temperature sensor
Simple charger on-off control can be implemented by connecting a relay or open collector optocoupler output from a Li-Ion BMS to the remote control port of the charger. Alternatively complete control of voltage and current can be achieved by connecting to the galvanically isolated CAN bus port.
